EQUINOX
Introducing the Equinox, a custom keyboard designed for premium aesthetics and typing feel in a compact package.
Project Status
Complete
Extra units sold
Group buy complete
Complete
2020-03-10
Extra units sold
Group buy complete
Extras sale
2020-03-09
Units shipped; group buy complete
Extra units to be available at Cannonkeys on Saturday at 10:00AM EST
Manufacturing
2020-01-20
Manufacturing complete; units to ship following Chinese New Year
Group buy closed
2019-10-12
Boards to enter manufacturing shortly
Group buy
2019-09-28
Board now available for sale at Cannonkeys, Mykeyboard, and Yusha Kobo
Announced
2019-06-22
IC published at GeekHack
Beyond the Typical
Equinox skips the plate to offer maximum flex.
The PCB is secured by its tabs from below by rubber gaskets directly to the case, earning the name of tabbed “gasket” PCB mount.

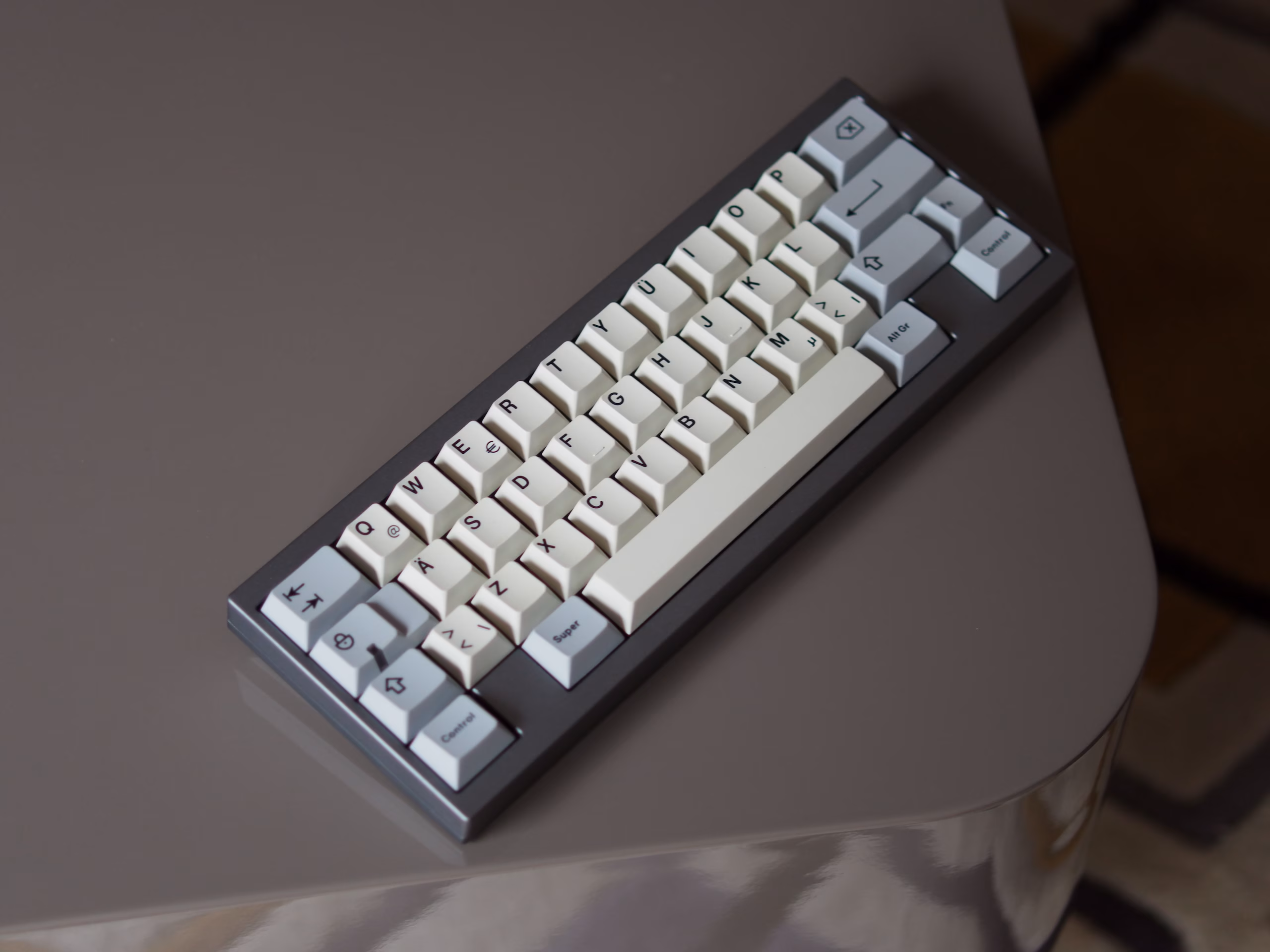

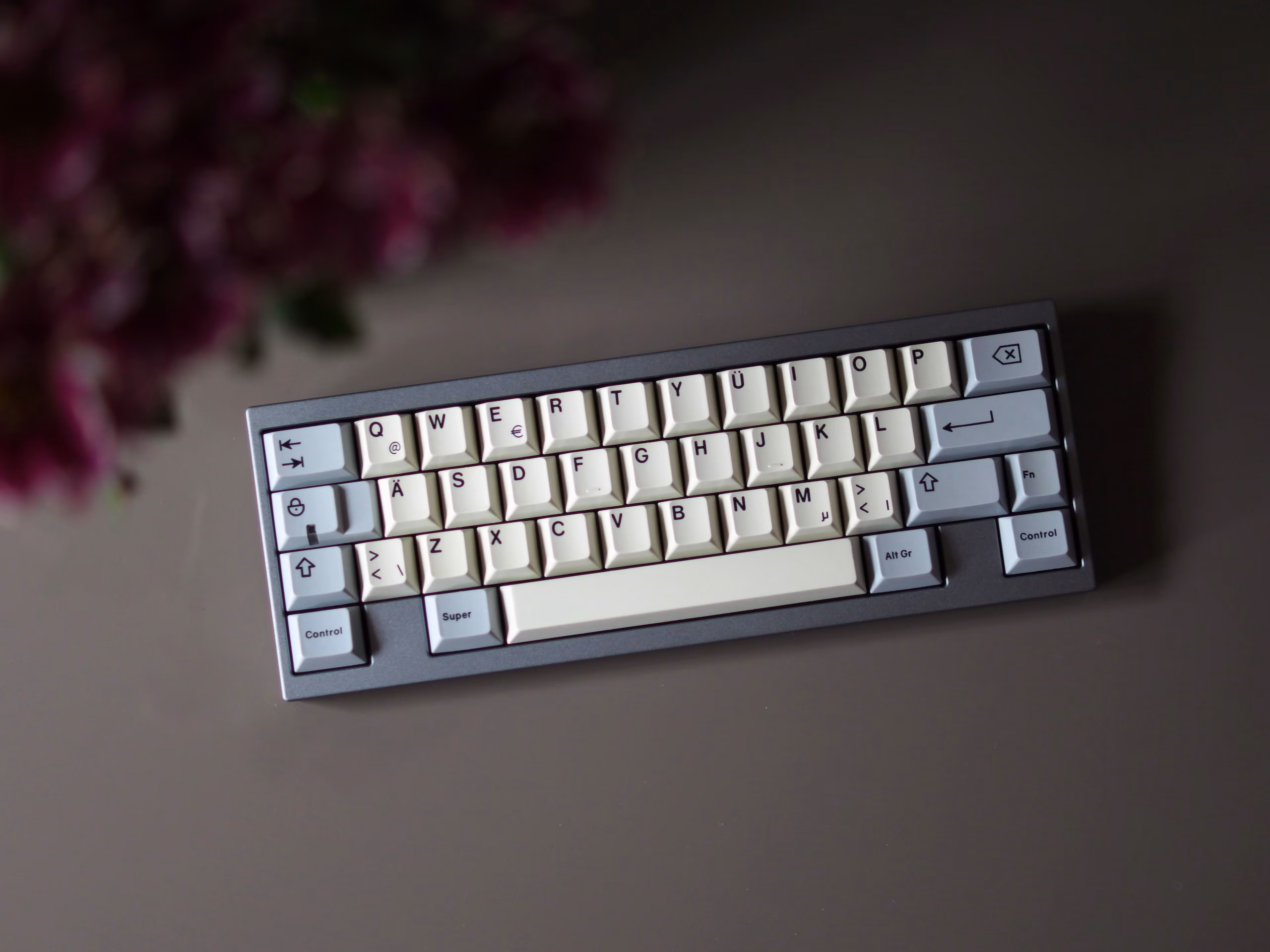

Compact and Classy
The winkeyless blockers have been implemented for a classic aesthetic, regardless of the board’s small footprint.

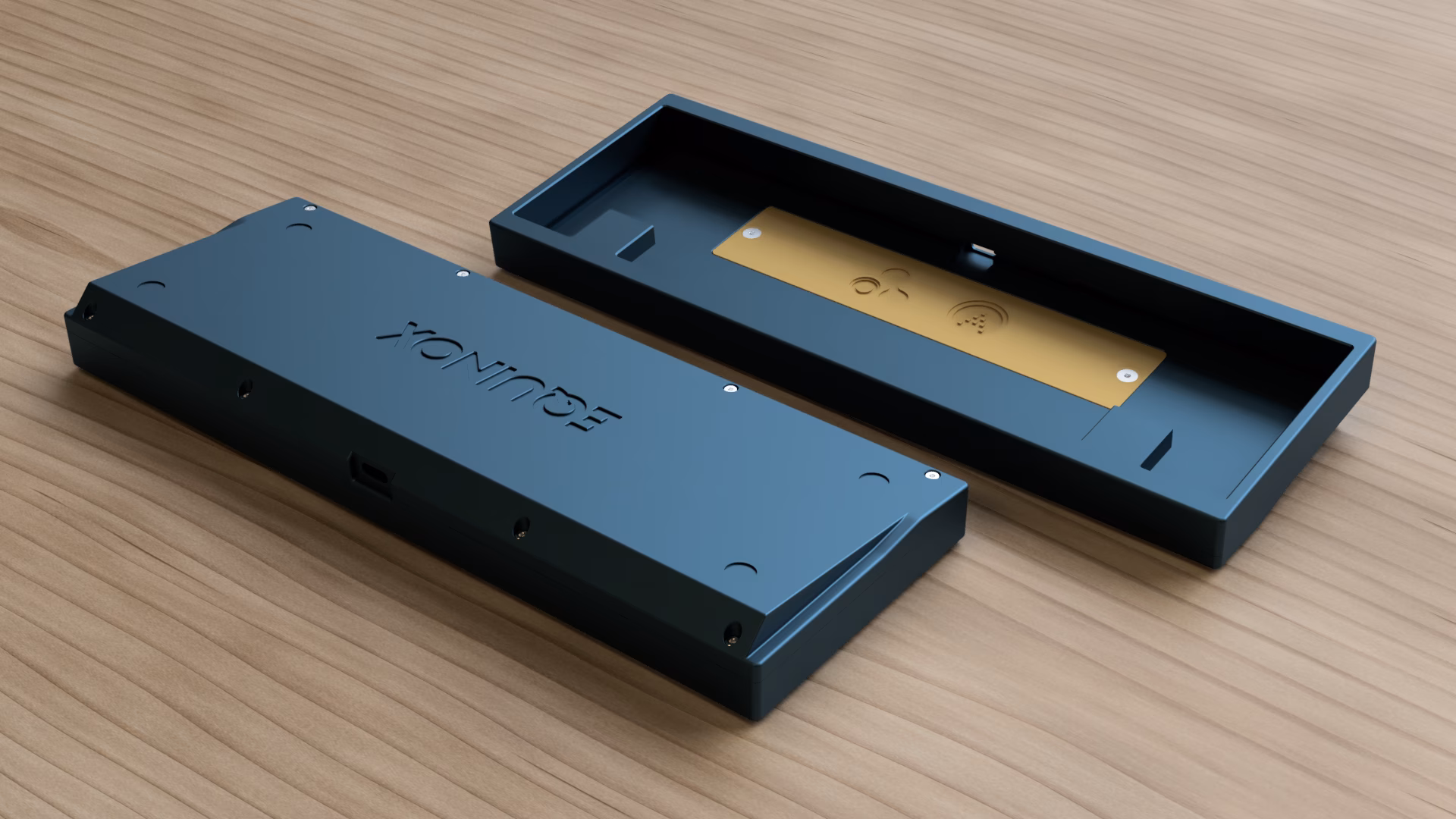

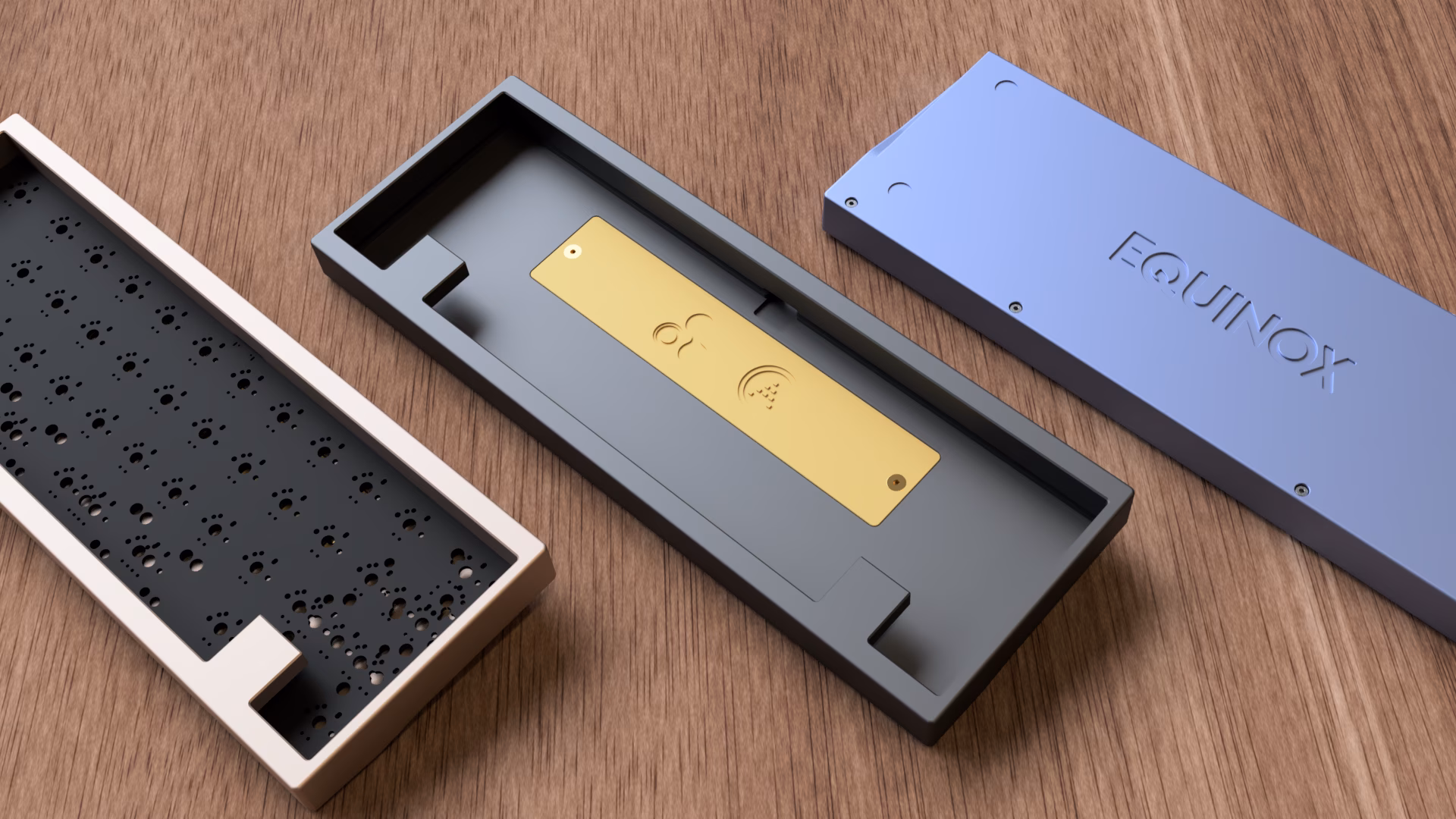

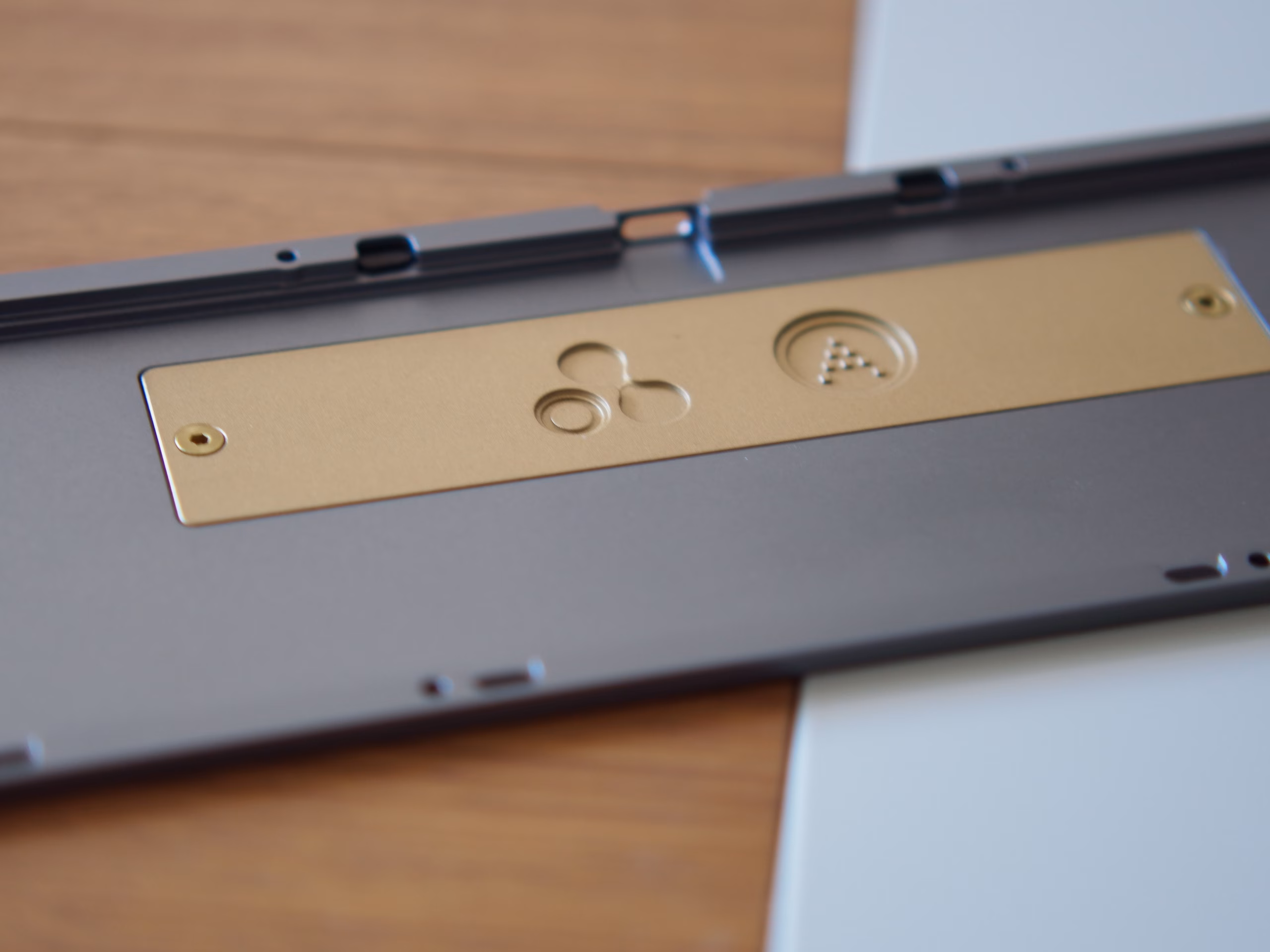

An internal weight adds sufficient mass for use at a desk, while the all-aluminum exterior provides durability on the go.
Specifications
Typing Angle | 6deg |
Case Material | Aluminum Brass internal weight |

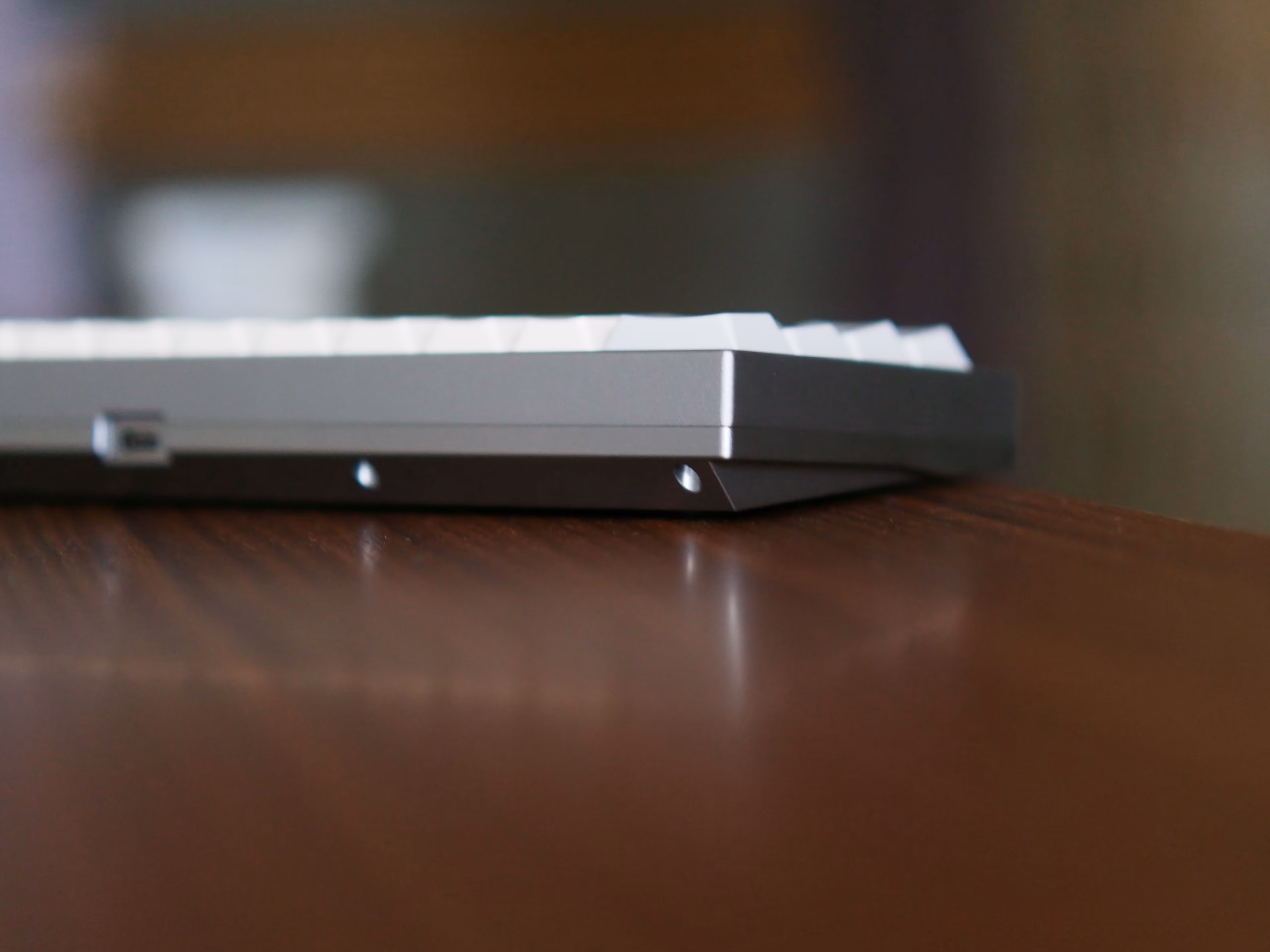

Front Ledge Height | 17.25mm |
PCB | Soldered (non-hotswap), backlight and underglow LED support |
Weight | 740g |
Vendors | Cannonkeys, Yusha Kobo, Mykeyboard.eu |
Price (at time of sale) | Roughly 270USD |

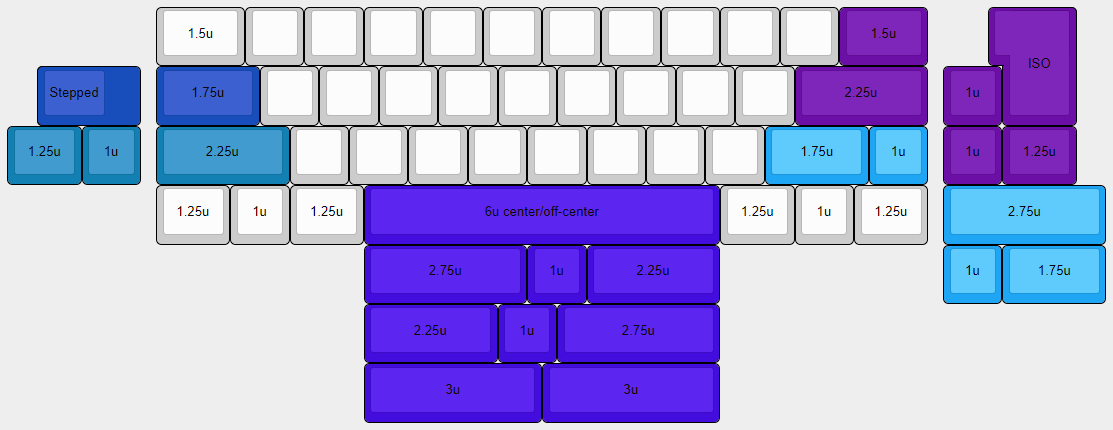

Supported Layouts |
|
Credits to ChrisSwires and Ion Keyboards for photos
